Stainless steel GSM hive scale with LED display

http://www.operchip.com:8069/web/image/product.template/9/image_1920?unique=27daa08

FILIP-SLG
Remote monitoring of beehives and apiaries, a security device for apiaries. Remote monitoring is a paid service.

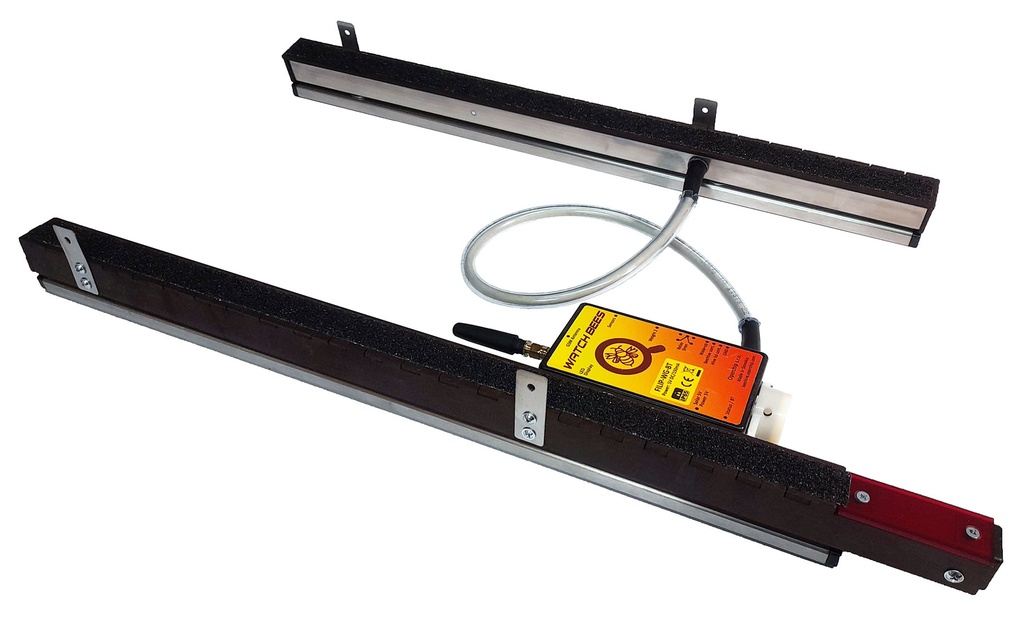

Components: Two scale bars under the beehive with electronics connected by cable (LED display, external thermal and humidity sensor, Li-Ion battery 3.7V / 2.6Ah, siren 95dB, blue LED Bluetooth). USB charging cable 1m for PowerBank. Magnet for waking up the device. Manual and warranty card.

264.00 € 264.0 EUR 264.00 €

220.00 €

    This combination does not exist.

    Add to cart
    Documents to download:
    Navod FILIP-SLG.pdf

    Framework agreement on the terms and conditions of service..

    Framework contract

    Measurements - functions

    1. The device forms part of the beekeeping diary in the app.
    2. Red segment LED display..
    3. Measurement of beehive weight up to 200kg.
    4. Measurement of outdoor temperature.
    5. Measurement of outdoor humidity.
    6. Increases and decreases in laying or stock.
    7. Approximate number of bees based on weight..
    8. Automatic tracking of swarming based on weight.
    9. Shock detection. 4 adjustable sensitivity levels.
    10. Status of detectors in the two security zones.
    11. Built-in siren 95dB.
    12. Battery status (0-100%).
    13. Listening to the sounds under the hive via cell phone as a phone call.
    14. Measurement of GPS position on the map.
    15. Frequency analysis of bee buzzing under the hive. Up to frequency 1kHz.

    Alarm conditions

    1. Exceeding or losing weight - two adjustable values.
    2. Reaching the set ambient temperature.
    3. Reaching the set ambient humidity.
    4. Battery discharge below 30%.
    5. Shock and tilt detection.
    6. Detection of intrusion into the apiary or hives. Magnetic contact, motion sensor, phototape.
    7. Sizing based on weight loss.

    Display and control

    1. Weight and battery status display on the LED display. After waking up the scale with a magnet.
    2. Display of the previous weight status on the LED display. Past wake-up of the scale by magnet.
    3. Displaying a weak signal or the absence of a mobile operator on the LED display.
    4. Display of error conditions on the LED display with description and error number.
    5. Measurement from one minute up to once every 24 hours with minute resolution. Measurements will remain recorded even after the battery is discharged.
    6. Setting different times when the GSM modem should be active. It has an impact on power consumption.
    7. Control and monitoring via SMS. 5 phone numbers. 8 times to set regular daily SMS.
    8. Monitoring via Emails. 5 emails. 8 times to set up regular daily emails.
    9. Monitoring and settings via the application via the Internet - graph, history, alarms, events, settings. On mobile or tablet or computer.
    10. The scale can be used as a local scale with measurement on the LED display without remote transmission (completely free operation).
    11. The scale can only be controlled and monitored via SMS.
    12. The scale can be monitored via email.
    13. The scale can be monitored via bluetooth app.
    14. The scale can be controlled and monitored via an app over the internet - the beekeepers' intelligent assistant.
    15. Alarms from the alarm system call two mobile phone numbers.
    16. The alarm system is also switched on and off by a call from a mobile phone. Keypad replacement.

    Operation

    1. The intelligent beekeepers assistant - Cloud, WEB server. Access to data from the hive scale.
    2. Maintenance-free solution. Non-slip surface, stainless steel yokes as feet. Does not have to be completely flat substrate surface.
    3. The battery is rechargeable from a power bank, mobile phone charger or solar photovoltaic panel.
    4. Integrated Chip SIM. After paying for the service, you place the scale under the hive and it works with your mobile phone. There is nothing to set up or do.
    5. Option to export data for free to open office in the form of spreadsheets.
    6. Automatic software updates in the scale remotely via the Internet when new features are supported. No physical intervention in the scale or the beehive is required.
    7. Automatic time synchronisation via GSM network and internet.
    8. Defining texts of custom SMS commands and texts in SMS statements.
    9. Support for 12 languages.

    Technical parameters

    1. The material of the hive scales are stainless steel yakle in which are mounted 4 durable aluminum strain gauges 12,8x12,8x80mm - 4x50kg. The connecting material is also stainless steel. (screws, nuts)
    2. The right and left sides are weighed separately and the weight is added together.
    3. Each side has its own thermal compensation for the effect of temperature on weighing. 2x NTC 10k thermistor in current loop.
    4. Charging voltage 5V/400mA. Connector and charging cable DC 2.5/USB.
    5. 18650 battery with electronic discharge and short circuit protection 3,7V/2600mAh.
    6. 7-segment red four-digit LED display 0.36".
    7. Chip SIM, GSM/GPRS (2G). Bluetooth 3.0 SSP pre android.
    8. The relay switches max. 24V/2A. The input is switched to GND.
    9. Non-slip surface. Movable stainless steel feet 45cm long allowing to place the scale on any surface.
    10. Coverage IP54. Resistance to humidity and temperature from -20 to +60 degrees Celsius.
    11. Maximum load capacity when measured 200kg. Total short-term maximum load 450kg.
    12. Weighing accuracy +-50g. Thermal stability 10g/°C without software thermal compensation.
    13. Temperature - resolution 0.1 °C, accuracy +-0.3 °C.
    14. Humidity - 1% resolution, 3% accuracy.
    15. The feet adjust to the base on which the hive scale stands.
    16. Dimensions of the hive scale lxwxh left 505x80x36 mm, right 450x25x36 mm.

    * Features in red are not available.
